Model PD0409J7575S2HF
Rev A
Ultra Low Profile 0805 Power Divider
75 to 75
Description
The PD0409J7575S2HF is a low profile, sub-miniature Wilkinson power divider in
an easy to use surface mount package. The PD0409J7575S2HF is ideal for high
volume manufacturing and delivers higher performances than traditional printed and
lumped element solutions. The PD0409J7575S2HF is matched to 75 ? and has a
height profile of 0.5 mm which is ideal for high level integrations in the following
markets:
GSM, WCDMA, DVB-H (Europe) and Terrestrial TV. The
PD0409J7575S2HF does not include the resistive element and therefore, requires
an external resistor for operation. The PD0409J7575S2HF is available on tape and
reel for high volume manufacturing pick and place.
etailed Electrical Specifications: Specifications subject to change without notice.
ROOM (25 ° C)
Features:
Parameter
Min.
Typ.
Max
Unit
?
?
?
?
?
?
?
?
?
?
?
400-900 MHz
9.3 dB Isolation (output ports)
Good Return Loss
0.5mm Height Profile
75 Input / 75 Outputs
Low Insertion Loss
Surface Mountable
Tape & Reel
Non-conductive Surface
RoHS Compliant
External Resistor Required
Frequency
Input Port Impedance
Output Port Impedance
Return Loss
Insertion Loss*
Amplitude Balance
Phase Balance
Isolation (Output Ports)
Power Handling
400
10
8.2
75
75
12
0.5
0.1
1
9.3
900
0.6
0.6
3
2
MHz
dB
dB
dB
Degrees
dB
Watts
?
Halogen Free
Operating Temperature
-55
+85
oC
* Insertion Loss stated at room temperature (Insertion Loss is approximately 0.1 dB higher at +85 oC)

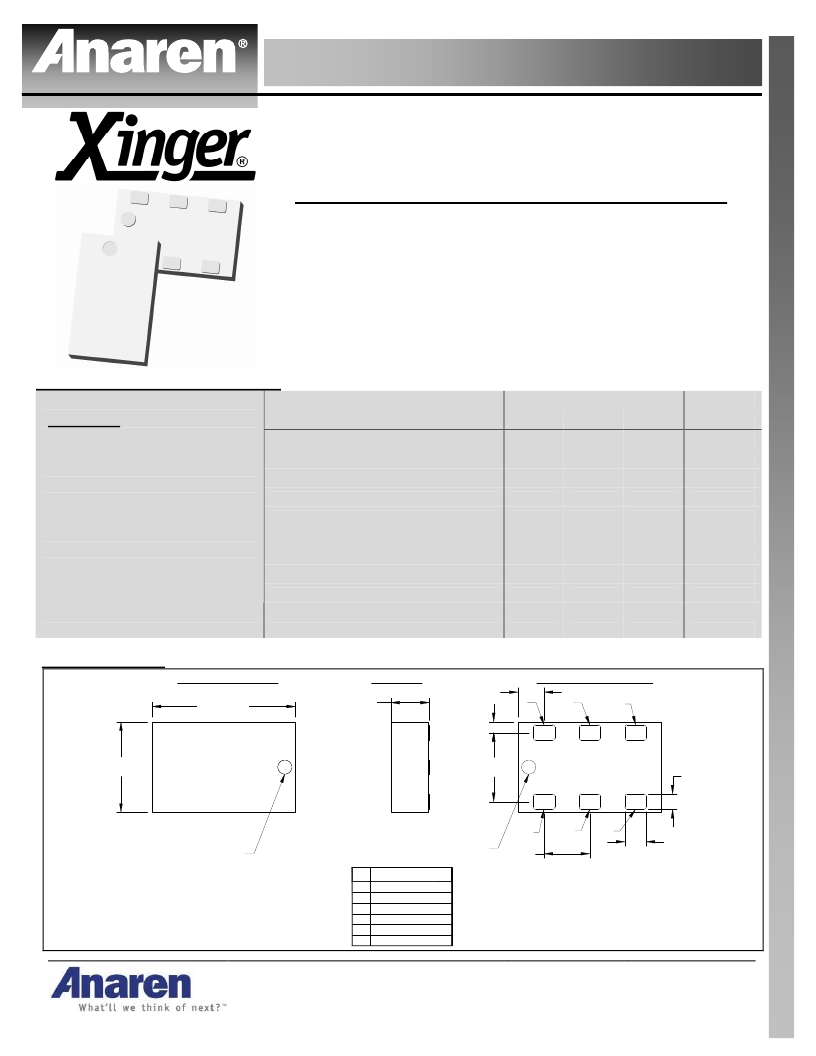

Outline Drawing
TOP VIEW (Near Side)
SIDE VIEW
4x 0.37
BOTTOM VIEW (Far Side)
2.04±0.10
0.54±0.05
1
2
3
2x 0.15
1.29±0.10
6x 0.98
6x
0.22
Orientation Marker
Denotes Pin Location
Orientation Marker
Denotes Pin Location
6
4x 0.65
5
4
6x
0.30
Pin
1
2
Designation
GND
Input
Mechanical Outline
-Dimensions are in Millimeters
3
4
5
6
GND
Output 1
GND
Output 2
USA/Canada:
(315) 432-8909
Visit us at
www.anaren.com
Toll Free:
Europe:
Asia:
(800) 411-6596
+44 2392-232392
+86 512-62749282
